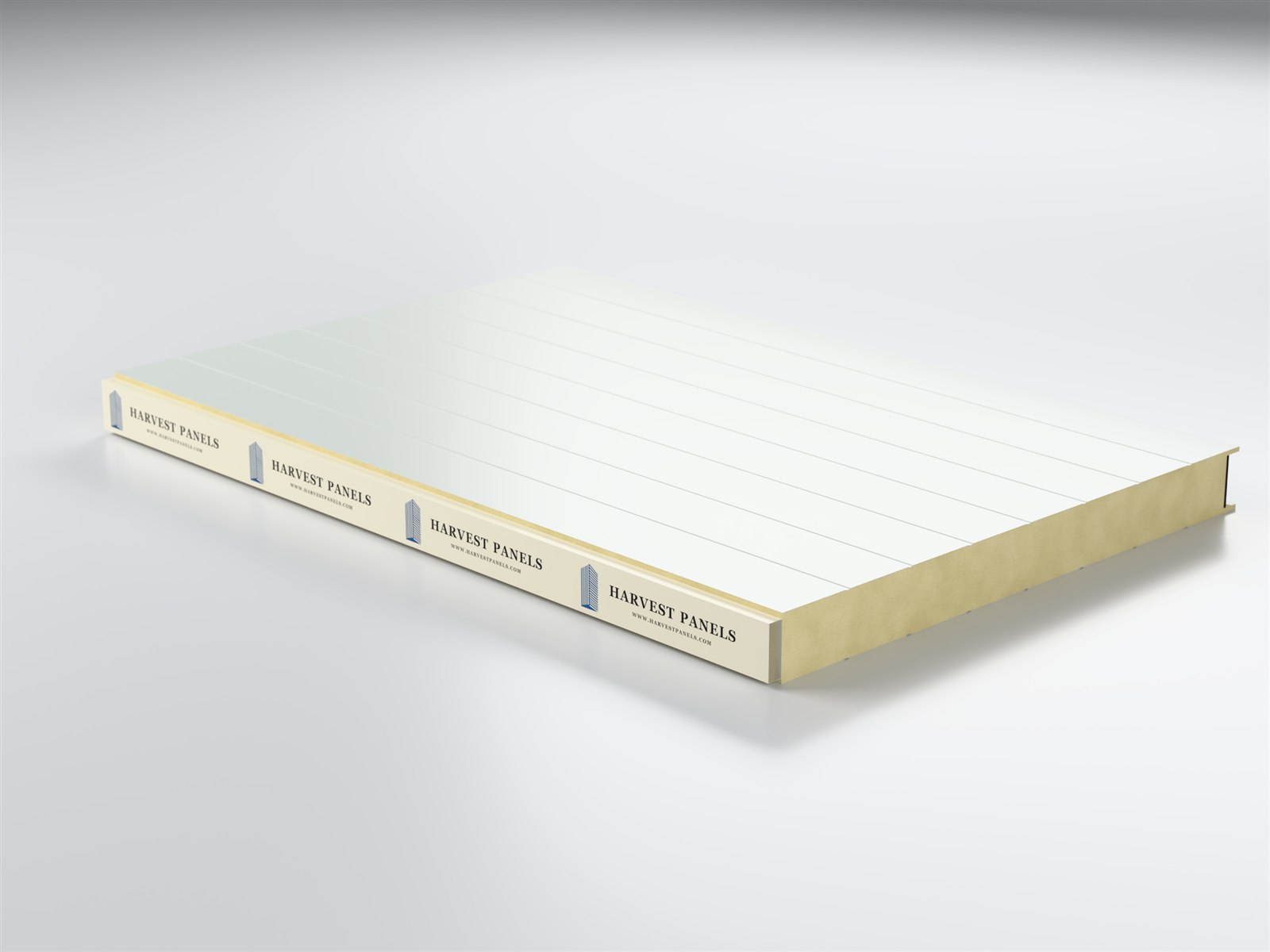

Interior Wall & Ceiling Panel
Satin steel faces. Rigid foam core. A joint that locks.
Panel thickness (3.94")
Cover width (39.37")
Insulation value (RSI 5.3)
Steel face, both sides (0.020")
Interactive 3D
Pause the spin. Lift the steel off the core. Slide the joint together.
The Joint
Groove depth (25.4 mm), with a dark foam gasket at the back
Groove opening (83.8 mm)
Tongue height (82.8 mm), wrapped in branded tape
Satin grey-white steel
| Lengths | 10′ to 36′ (3.0 to 11 m), custom available |
| Faces | 0.5 mm (0.020") steel, lined, satin |
| Core | PIR foam |
| Joint | Tongue and groove with gasket |
Where It Goes
The 4" (100 mm) PIR Insulated Metal Panel (IMP) is our standard for interior walls and ceilings.
